Gypsum powder calcination production line

Wide application prospects, mature technology, and large production capacity

Get a free quote Hotline：132-5808-6277

Service Support

2025-1-3

Information Details

Huaxing Equipment's gypsum powder calcination production line is a production line that processes natural gypsum or industrial by-product gypsum and other raw materials into gypsum powder. Its main processes include crushing, grinding, calcination, etc., to produce building gypsum powder that meets standards.
The main application directions of gypsum powder calcination production line include the production of building gypsum powder and desulfurization gypsum powder. Widely used in fields such as construction and building materials.

Adopting rapid calcination technology to improve production efficiency

Ensure product quality

Adopting direct contact heat transfer method

Low energy consumption

Equipped with an automated control system

Technical stability

The device has a simple and compact structure

Low equipment maintenance volume

stirring system

Adopting a dual axis gravity free mixer, the overall structural design is compact and reasonable, with a small footprint. The dual axis blade rotor with animal material composite circulation infiltration mixing is used, with fast mixing speed and high mixing uniformity; Sealed operation, high loading factor, and high safety factor.

packaging system

The packaging system is matched with air floating fixed or rotary packaging machines as needed. It is a new generation of packaging machines designed and produced by our company, which has the advantages of accurate weighing, stable performance, simple operation, good sealing, and reasonable structure.

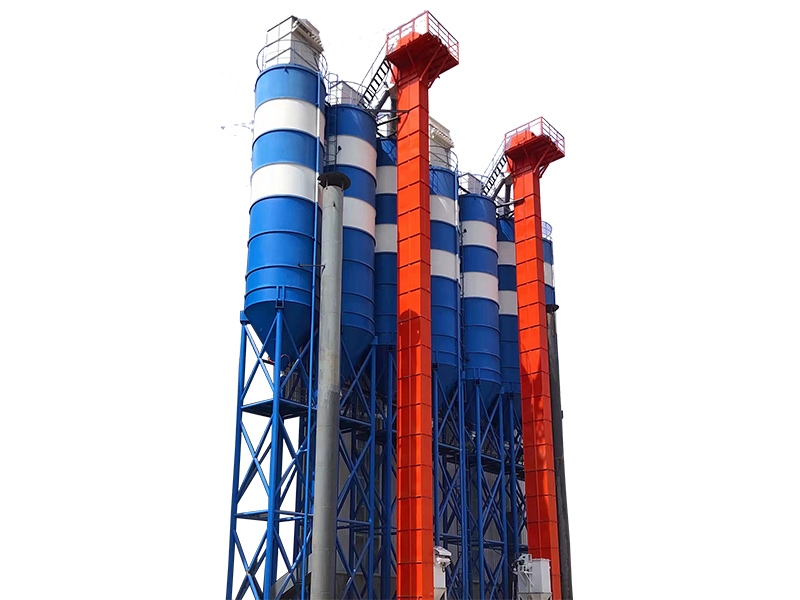

conveying system

The bucket elevator is used to lift materials from high places, with high conveying capacity, high lifting height, minimal damage to materials, and long equipment service life.

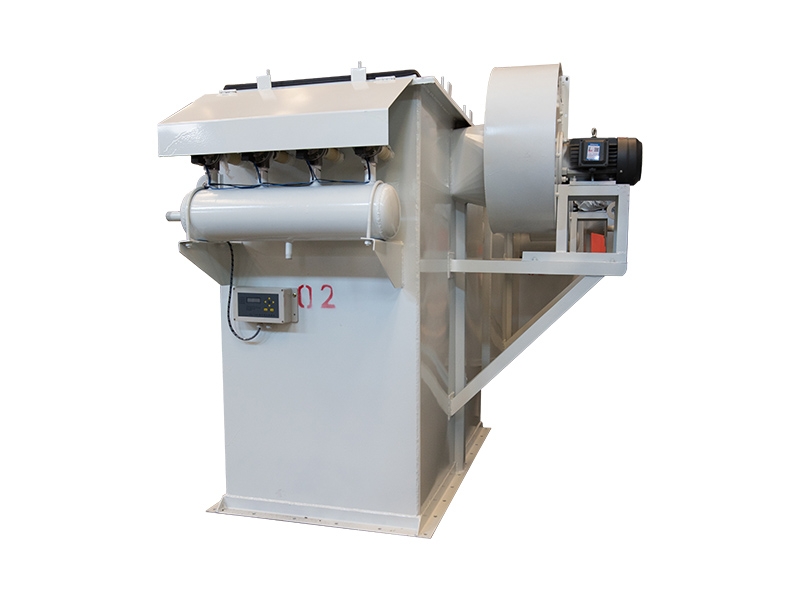

Dust removal system

Pulse bag filter adopts international advanced dust cleaning technology, with reasonable structural design, small footprint, easy operation, stable and reliable operation, large gas processing capacity, high dust removal efficiency and material recovery utilization rate. Different specifications and performance of filter materials can be selected according to the working environment, and the dust removal filter bag has a long service life.

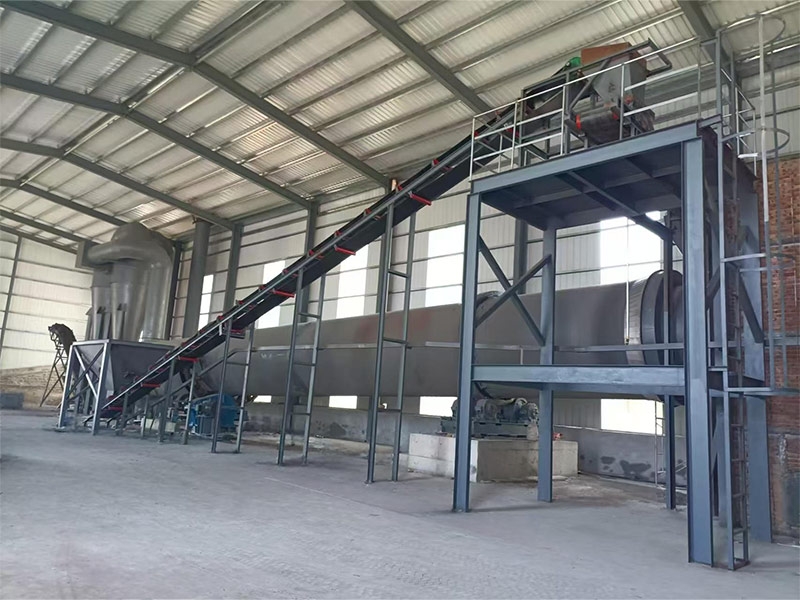

drying system

The gypsum powder calcination line dryer is an important component of the gypsum powder drying and calcination production line, which includes a feeding hopper, a drying drum, a hot air flow system, a plate copying and cleaning device, etc. Mainly used to remove moisture from gypsum powder and improve its dryness. Wet gypsum is transported to the feeding hopper through a conveyor belt, and after entering the drying drum, it comes into contact with the hot air flow and evaporates moisture using the temperature difference.

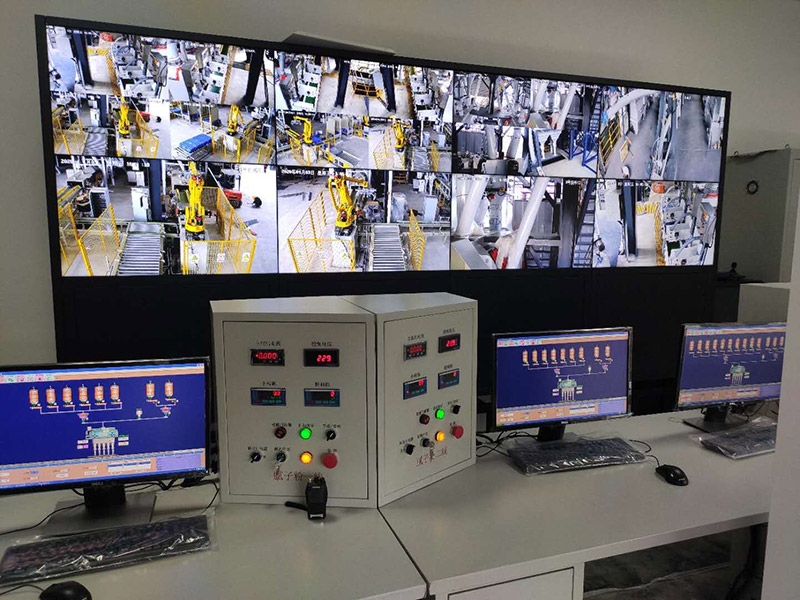

intelligence control system

The production line control system adopts branded industrial control computers and PLC control instruments to automatically control the entire process flow of the production line, such as batching and mixing. And simulate dynamic display in the interface, with intuitive and convenient operation, providing various report data for the production management of dry mixed (powder) mortar.
