Putty powder production line

Reasonable equipment design with high degree of automation

Get a free quote Hotline：132-5808-6277

Service Support

2025-1-3

Information Details

Huaxing Equipment Putty Powder Production Line is an automated production line used for producing putty powder, mainly including raw material storage, metering and batching, material mixing and stirring, and finished product packaging. It is divided into two types: semi-automatic and fully automatic. The semi-automatic putty powder production line is suitable for the mixed production of various dry powder materials such as internal and external wall insulation mortar, masonry mortar, etc. It has the characteristics of moderate investment, short construction period, and simple operation. The fully automatic putty powder production line is suitable for large-scale production, with the characteristics of high efficiency and continuous production, and is suitable for enterprises with high production requirements.

Reasonable production line design and small footprint

Compact structure, suitable for various production environments

Equipment operation is simple

maintainable

Capable of producing diversified products

Meet the needs of different customers

High degree of automation in the production process

Reduced labor costs

stirring system

Adopting a dual axis gravity free mixer, the overall structural design is compact and reasonable, with a small footprint. The dual axis blade rotor with animal material composite circulation infiltration mixing is used, with fast mixing speed and high mixing uniformity; Sealed operation, high loading factor, and high safety factor.

packaging system

The packaging system is matched with air floating fixed or rotary packaging machines as needed. It is a new generation of packaging machines designed and produced by our company, which has the advantages of accurate weighing, stable performance, simple operation, good sealing, and reasonable structure.

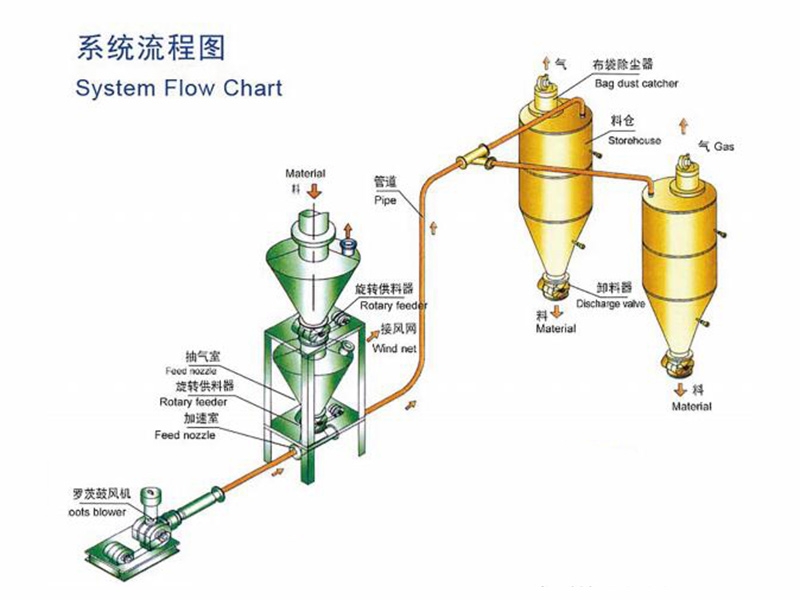

conveying system

For the process flow that requires material handling during transportation, we choose pneumatic conveying equipment, which has a simple structure and easy operation. It can be used for horizontal, vertical, or inclined transportation, and can simultaneously perform physical operations such as heating, cooling, drying, and airflow classification or certain chemical operations during the transportation process; It can also be loaded in one place and unloaded in multiple places

Metering system

The measuring system can achieve automatic control of aggregate batching and high measurement accuracy; Choose branded sensors with stable performance; Strictly follow the prescribed proportion of ingredients and accurately adjust the output of various materials.

intelligence control system

The production line control system adopts branded industrial control computers and PLC control instruments to automatically control the entire process flow of the production line, such as batching and mixing. And simulate dynamic display in the interface, with intuitive and convenient operation, providing various report data for the production management of dry mixed (powder) mortar.
