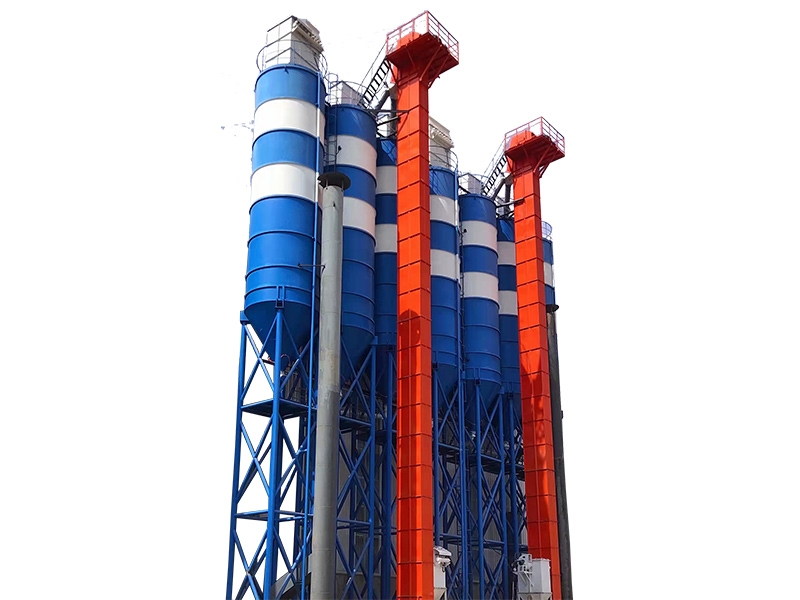

Huaxing Equipment Lightweight Plastering Gypsum Production Line is an automated production line specifically designed for producing lightweight plastering gypsum. The production line mainly consists of units such as conveying, batching, mixing, packaging, and palletizing. It is centrally controlled in the control room and the entire production and packaging process of the final product is completed by the production line equipment.
01High production efficiency and stable quality
02Reasonable layout of equipment from top to bottom
03intelligent control
Real time monitoring of production line operation status
04Good dust treatment
High environmental performance
stirring system
Adopting a dual axis gravity free mixer, the overall structural design is compact and reasonable, with a small footprint. The dual axis blade rotor with animal material composite circulation infiltration mixing is used, with fast mixing speed and high mixing uniformity; Sealed operation, high loading factor, high safety factor。

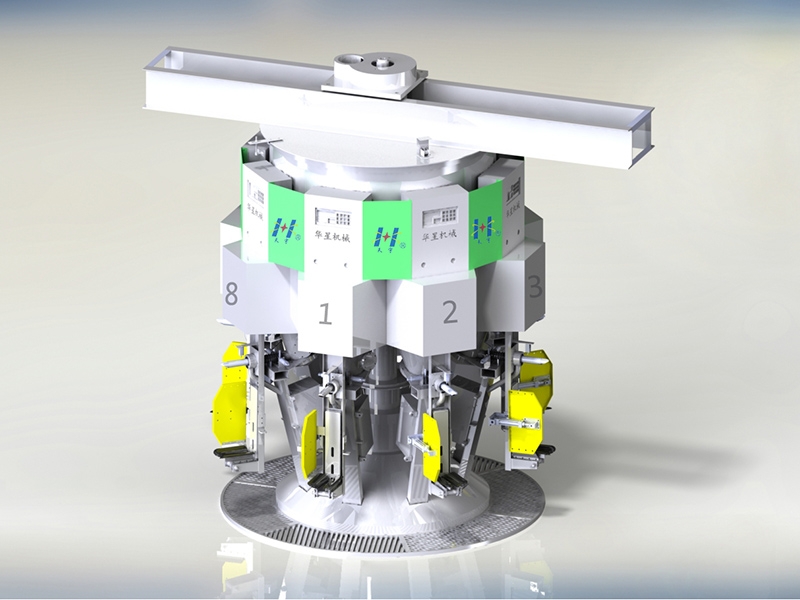

packaging system
The packaging system is matched with air floating fixed or rotary packaging machines as needed. It is a new generation of packaging machines designed and produced by our company, which has the advantages of accurate weighing, stable performance, simple operation, good sealing, and reasonable structure.
Dust removal system
Pulse bag filter adopts international advanced dust cleaning technology, with reasonable structural design, small footprint, easy operation, stable and reliable operation, large gas processing capacity, high dust removal efficiency and material recovery utilization rate. Different specifications and performance of filter materials can be selected according to the working environment, and the dust removal filter bag has a long service life.
conveying system
The bucket elevator is used to lift materials from high places, with high conveying capacity, high lifting height, minimal damage to materials, and long equipment service life.

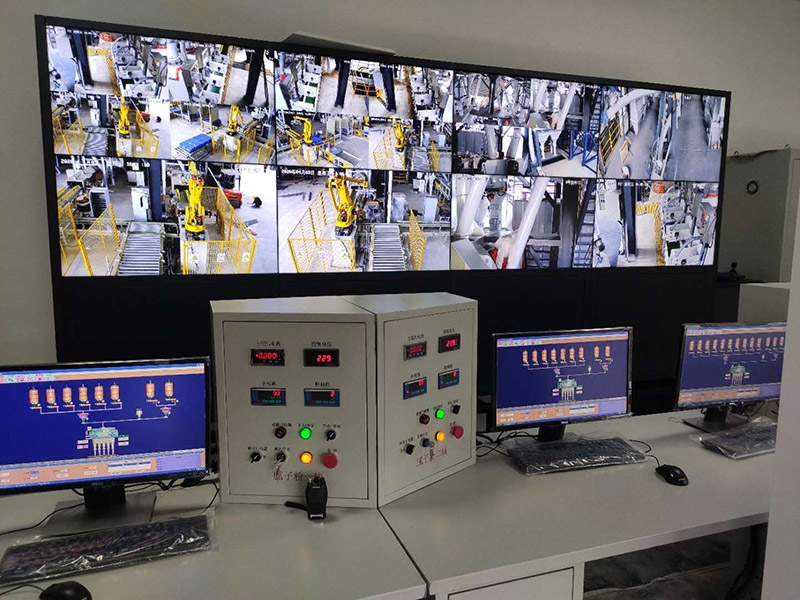

intelligence control system
The production line control system adopts branded industrial control computers and PLC control instruments to automatically control the entire process flow of the production line, such as batching and mixing. And simulate dynamic display in the interface, with intuitive and convenient operation, providing various report data for the production management of dry mixed (powder) mortar.
