Interior wall putty powder production line

The device is easy to operate, occupies a small area, and can produce multiple products

Get a free quote Hotline：132-5808-6277

Service Support

2025-1-3

Information Details

‌The production line for interior wall putty powder mainly consists of equipment such as material bin, measuring scale, control equipment, mixing bin, elevator, finished product bin, and packaging machine. We can produce various products, such as lightweight gypsum, gypsum mortar, putty powder, special mortar, etc. The entire production process is highly automated, greatly reducing labor costs.

The device is easy to operate and occupies a small area

compact

High degree of automation

Low labor cost

Two major dust removal methods

Realize environmentally friendly production

Short construction period

Quick investment returns

stirring system

Adopting a dual axis gravity free mixer, the overall structural design is compact and reasonable, with a small footprint. The dual axis blade rotor with animal material composite circulation infiltration mixing is used, with fast mixing speed and high mixing uniformity; Sealed operation, high loading factor, and high safety factor.

packaging system

The packaging system is matched with air floating fixed or rotary packaging machines as needed. It is a new generation of packaging machines designed and produced by our company, which has the advantages of accurate weighing, stable performance, simple operation, good sealing, and reasonable structure.

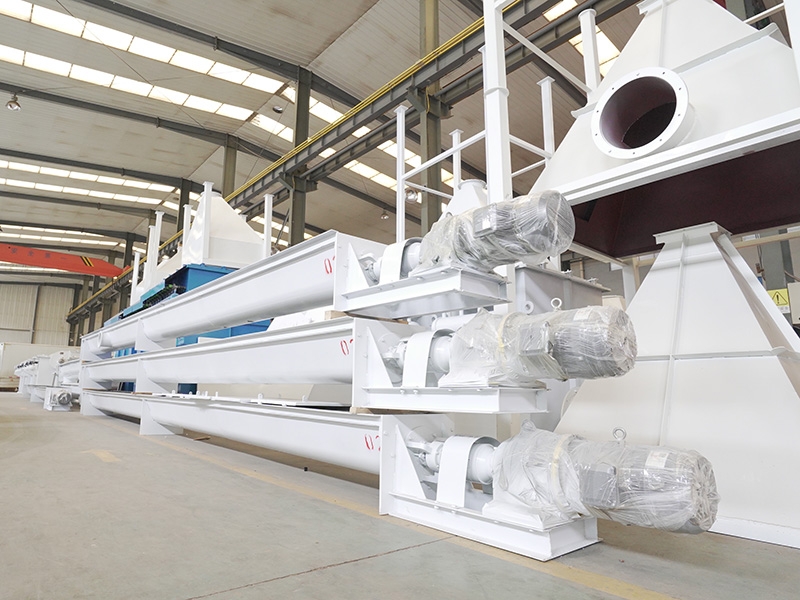

conveying system

Spiral conveyor is a widely used conveying equipment in chemical, building materials, metallurgical, and grain enterprises due to its large conveying capacity, high precision, and excellent conveying conditions. It is mainly used for conveying powdery, granular, and small block materials; It can be conveyed horizontally and obliquely, and the working position and posture can be freely selected, making it easy to disassemble and move.

Metering system

The measuring system can achieve automatic control of aggregate batching and high measurement accuracy; Choose branded sensors with stable performance; Strictly follow the prescribed proportion of ingredients and accurately adjust the output of various materials.

intelligence control system

The production line control system adopts branded industrial control computers and PLC control instruments to automatically control the entire process flow of the production line, such as batching and mixing. And simulate dynamic display in the interface, with intuitive and convenient operation, providing various report data for the production management of dry mixed (powder) mortar.
